High Performance BBK For Mercedes Benz CLA Class W117 18 Inch Car Rim Front 4 Piston Brake Kit Auto Brake System

Name: High Performance BBK For Mercedes Benz CLA Class W117 18 Inch Car Rim Front 4 Piston Brake Kit Auto Brake System
Brand: TEI-RACING
Price: 1 USD

Quality High Performance BBK For Mercedes Benz CLA Class W117 18 Inch Car Rim Front 4 Piston Brake Kit Auto Brake System wholesale

Brand Name : TEI-RACING

Model Number : P40NS

Certification : China National Inspection Agency

Place of Origin : China

MOQ : 1 Set

Payment Terms : L/C, T/T, Western Union, MoneyGram and so on

Supply Ability : 10000 sets per month

Delivery Time : 10-15 DAYS

Packaging Details : Package: 1.Each part is wrapped by EPE foam inside, carton box outside ; 2.Wooden frame is available as required3.Box size:42x42x42cm

Caliper Model : P40NS

Caliper Material : 6061 Aluminum alloy

Rotor Material : High carbon alloy

Package Weight : 33 kg

Shipment Way : Express.air or sea

Payment Way : Bank Transfer,Western Union or Paypel

Contact Now

High Performance BBK For Mercedes-Benz CLA Class W117 18 Inch Car Rim Front 4 piston brake kit auto brake system

Mercedes-Benz CLA W117 2013-2018 year

It can be installed our front and rear brake kit

Minimum Upgrade Rear Rotor Size is 330 mm,Double Caliper(Keep EPB function) Minimum Rear Rotor Size is 355 mm,Special Electric Caliper Minimum Rear rotor size is 380 MM

Normal or Electric handbrake

The original wheels do not need to add Spacers.

Orginal Brake Rotor Information

Front:

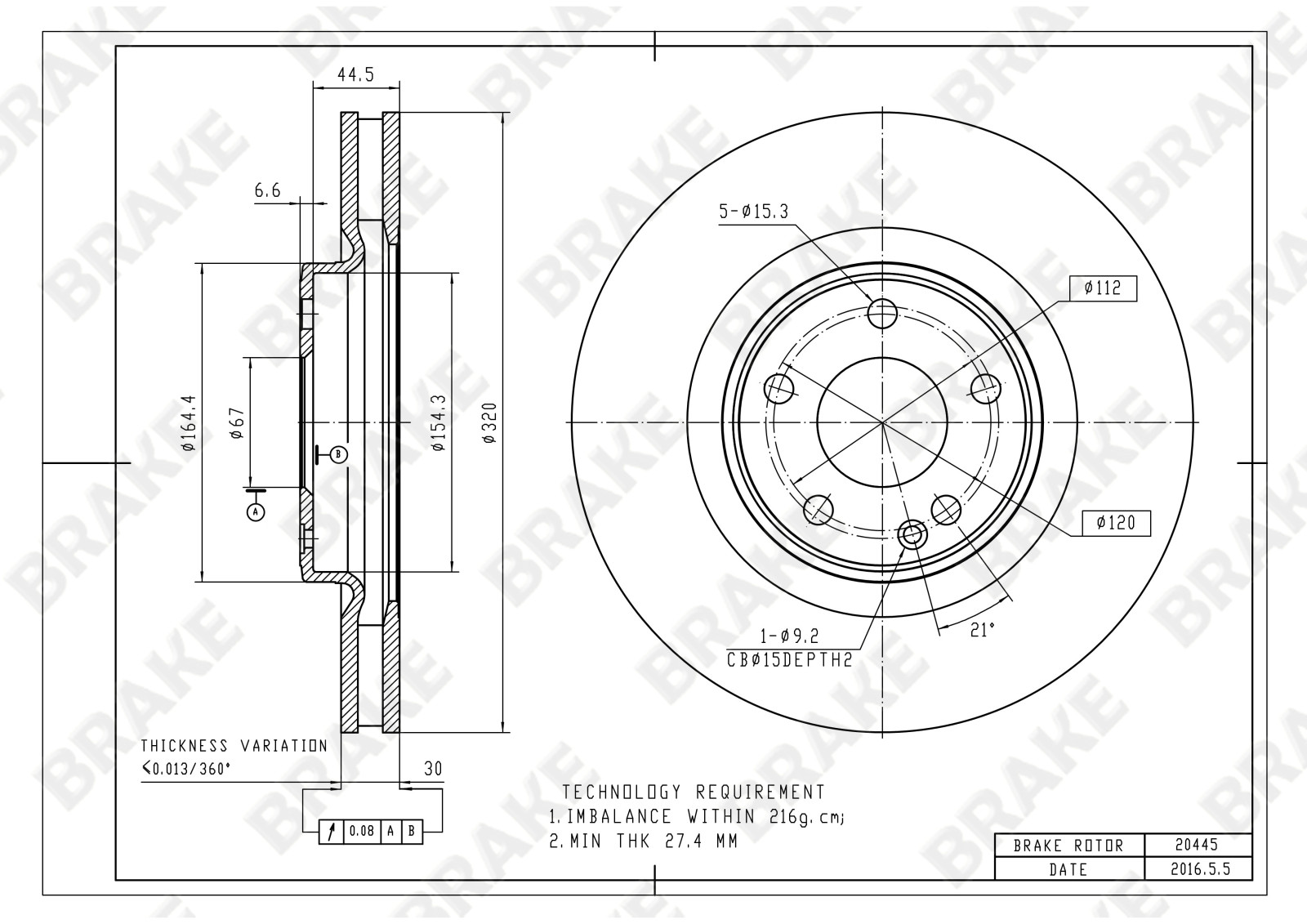

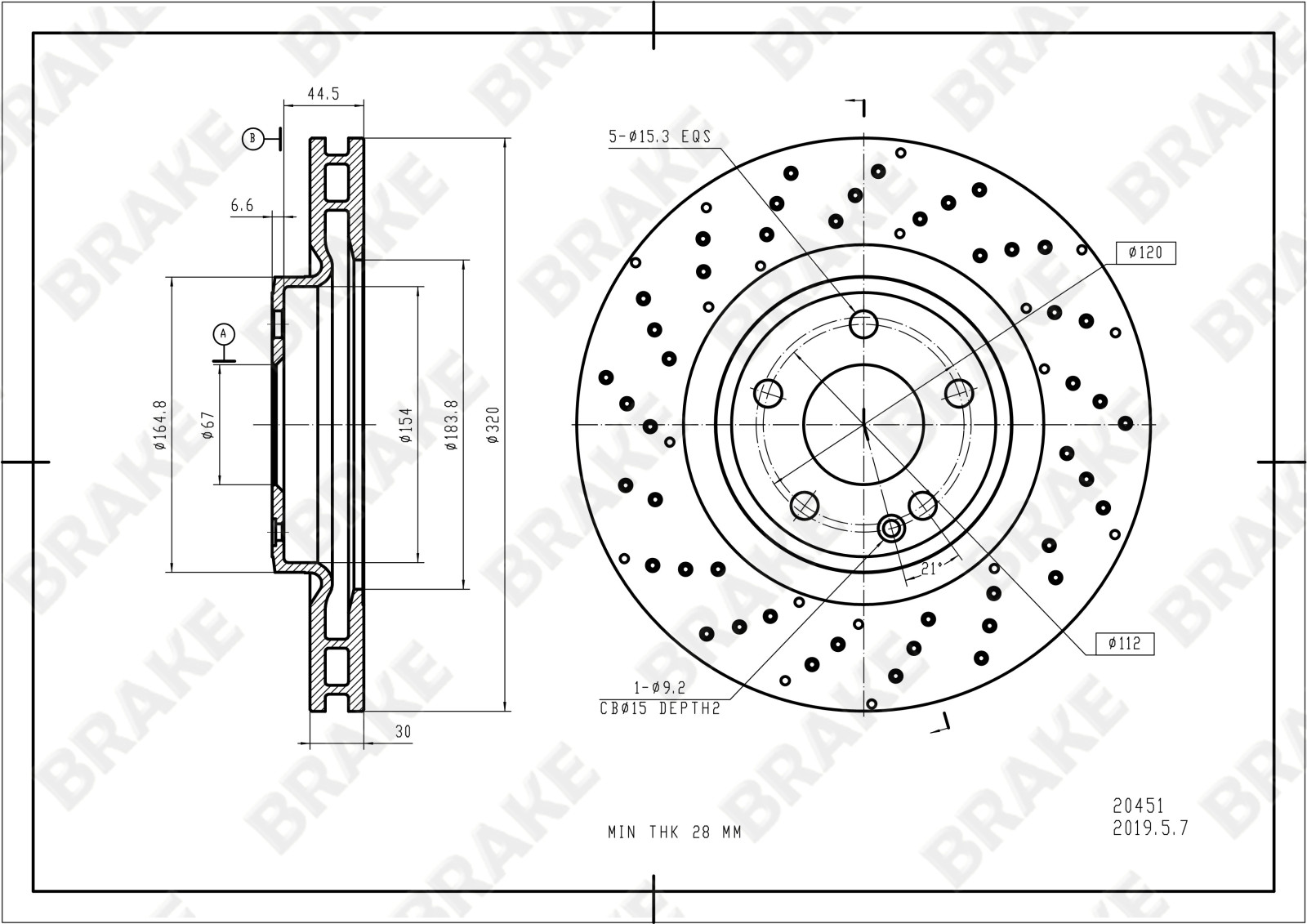

Front Original Rotor Information
Brake Rotor model	20445 or 20451
Rotor Diameter	320 mm
Rotor Hat Diameter	112 mm
Central Hole Diameter	67 mm
Disc Thickness	30 mm
Minimum Disc Thickness	28 mm
Total Height	51 mm
Number of Positioning Holes	5
Disc type	Ventilation

High Performance BBK For Mercedes Benz CLA Class W117 18 Inch Car Rim Front 4 Piston Brake Kit Auto Brake System

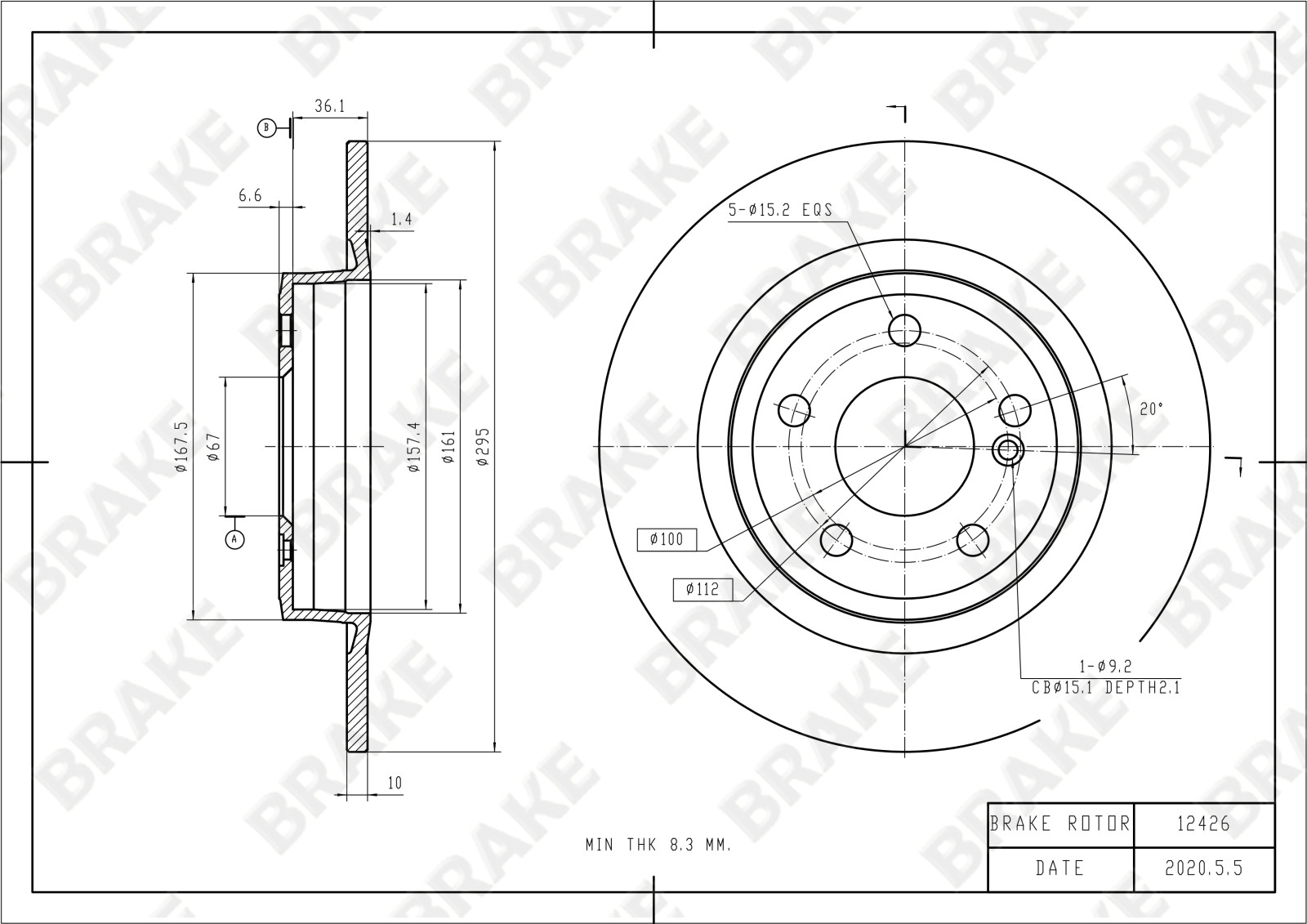

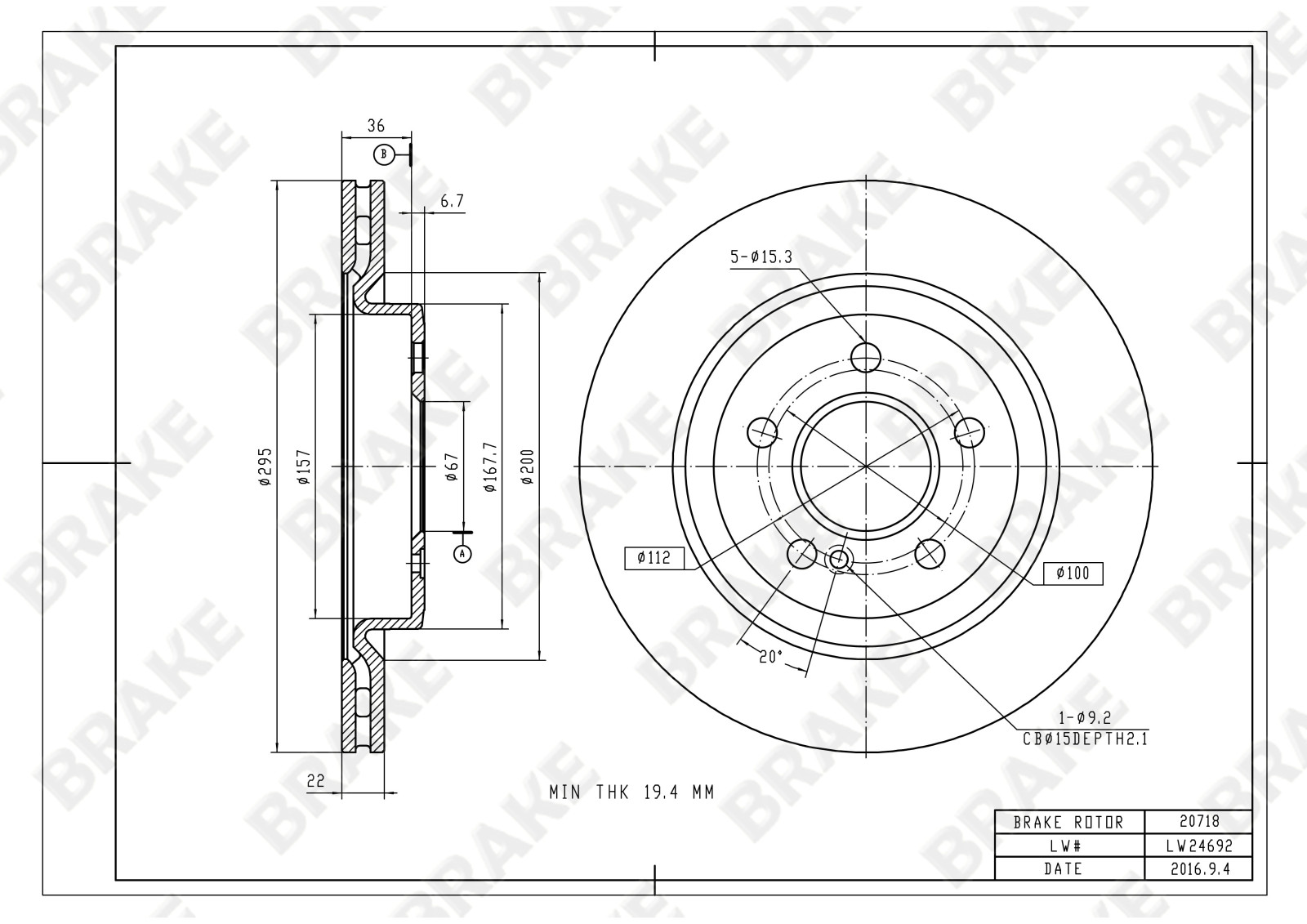

Rear Original Rotor Information
Brake Rotor model	12426(20718)
Rotor Diameter	295 mm
Rotor Hat Diameter	112 mm
Central Hole Diameter	67 mm
Disc Thickness	10 mm(22 mm)
Minimum Disc Thickness	8.3 mm(19.4 mm)
Total Height	44 mm(42.5 mm)
Number of Positioning Holes	5
Disc type	Solid(Ventilation)

High Performance BBK For Mercedes Benz CLA Class W117 18 Inch Car Rim Front 4 Piston Brake Kit Auto Brake System

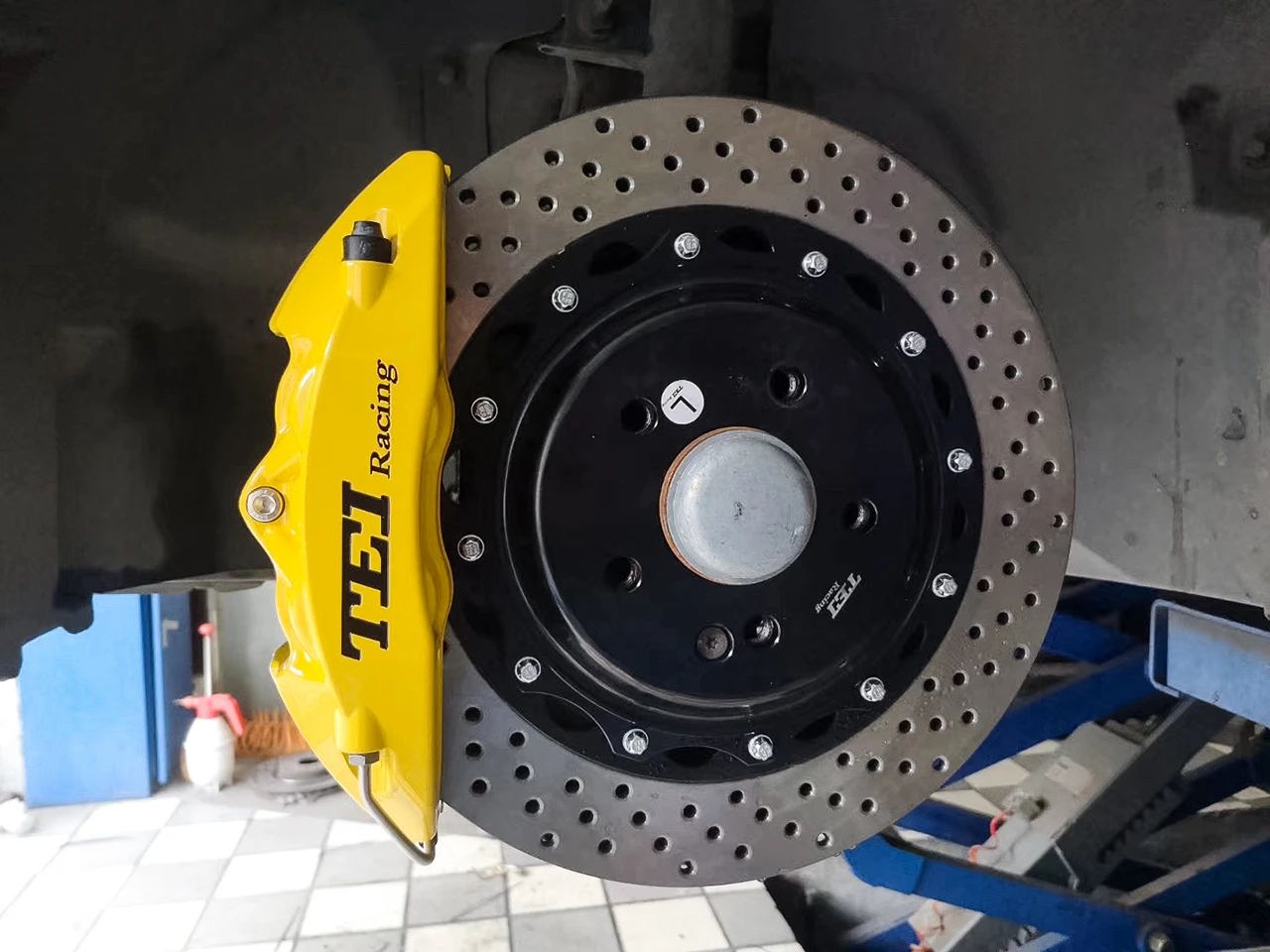

nstallation Case Brake Kit Information
Car Model	MB V260
	Front	Rear
TEI Caliper Model	P40NS	/
Caliper Color	YELLOW	/
Rotor Size	355X28 MM	/
Rotor Style	DRILLED	/
Bolt Type	FIXED	/
Brake Pad Type	SPPA	/
Noted:1.You can click the caliper model to check the products information.For example,You can click P40NS to check the P40NS brake information. 2.SPPA=Normal Ceramics Brake Pad,SPPL=Normal Metal Brake Pad SSS,XSS,MSS=Racing Metal Brake Pad

High Performance BBK For Mercedes Benz CLA Class W117 18 Inch Car Rim Front 4 Piston Brake Kit Auto Brake System
